The ArcWorld V2 DK is a state-of-the-art, industrially applicable robotic welding system that has been specially developed to optimize efficiency and precision in the welding of components.

The ArcWorld V2 DK is an ideally designed robotic welding system for companies that value maximum productivity, flexibility, and precision. Its dual-station configuration with a rotary-tilt axis and the option to integrate an L-positioner make this system perfect for demanding welding applications in the automotive industry, mechanical engineering, and metalworking in general.

This system combines innovative technologies with practical handling to ensure high flexibility and productivity for various welding applications. Thanks to its forklift-compatible design, the system can be easily integrated into different work areas and quickly relocated as needed, meeting the growing demands of agile production processes. Overall, the ArcWorld V2 DK represents a future-proof solution that enables companies to make their welding processes more efficient, precise, and flexible.

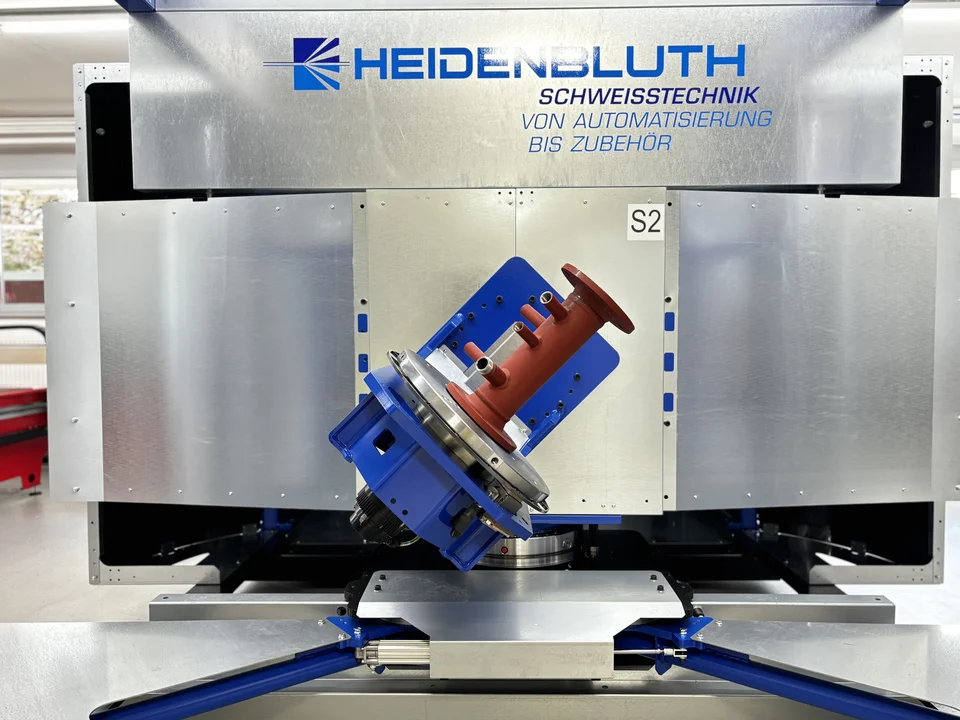

[Translate to English:] Heidenbluth - ArcWorld V2 DK
  • 1

    One rotary-tilt positioner at each station

  • 2

    This system can optionally be configured with an L-positioner.

  • 3

    This system can be operated with one or two robots.

  • 4

    The system is forklift compatible.

  • Productivity and efficiency: The 2-station design allows welding processes to be carried out in parallel, which significantly reduces production time.
  • Precision through rotary-tilting positioning: The rotary-tilting axis allows for precise alignment of the workpieces, so that even hard-to-reach areas can be welded without additional effort.
  • Versatility with optional L-positioner: The configuration option with L-positioner allows welding of components of different shapes and sizes, thus expanding the range of applications.
  • Easy handling and mobility: The forklift capability ensures flexibility in use and allows for easy adaptation to changing production needs.
  • Ergonomic operation: The rotary-tilt and L-positioners offer ergonomic handling and reduce the need for complex manual positioning, increasing ease of use and minimizing errors.
  • System type: 2-station robot welding system
  • Positioning: Rotary-tilt positioner on both stations, optionally configurable with L-positioner
  • Number of robots: Variable, depending on requirements and configuration
  • Welding process: MIG/MAG or other welding processes according to customer requirements
  • Loading: Forklift-compatible for flexible relocation
  • Maximum payload of the positioners: Depends on the model and configuration
  • Positioning axes: Two degrees of freedom (rotation and tilt), optimized for flexible component orientation
  • Operating system: User-friendly control panel for control and programming
  • MIG/MAG from EWM
  • MIG/MAG from Fronius
  • CMT - Cold Metal Transfer by Fronius
  • WIG-DC from EWM
  • EWM TIG AC/DC
  • TIG DC with cold wire feed from EWM
  • TIG AC/DC with cold wire feed from EWM
  • Stud welding technology
  • Pneumatic zero-point clamping system for holding Siegmund interchangeable plates
  • Siegmund Octagonal Table Plasma Nitrided
  • Automatic tungsten electrode changer
  • Automatic contact nozzle changer

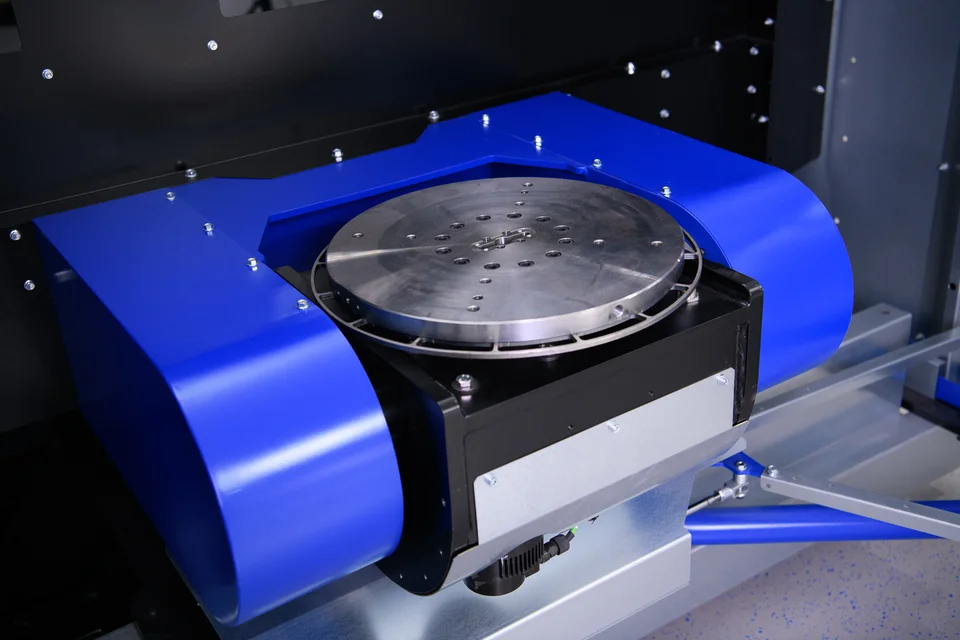

[Translate to English:] Heidenbluth - ArcWorld V2 DK

Flexibility through optional L-positioners

The ArcWorld V2 DK is highly configurable and can optionally be equipped with an L-positioner.

The L-positioner offers additional options for placing and rotating workpieces, enabling optimal alignment of particularly bulky or unwieldy components. This expands the system's range of applications and makes it suitable for a wider variety of applications and component geometries.

[Translate to English:] Heidenbluth - ArcWorld V2 DK

Funktionsweise und Konfiguration der ArcWorld V2 DK

Die ArcWorld V2 DK ist als 2-Stationen-Roboterschweißanlage ausgelegt. Das bedeutet, dass sie auf beiden Stationen gleichzeitig arbeiten kann, wodurch Produktionsprozesse parallelisiert und Durchlaufzeiten reduziert werden. Die Besonderheit dieser Anlage liegt in der Ausstattung beider Stationen mit einem Dreh-Kipp-Positionierer.

Dieser ermöglicht es, Werkstücke in zwei Achsen zu drehen und zu kippen, wodurch auch komplexe Schweißpositionen und schwer zugängliche Bereiche effizient erreicht werden können. Die Dreh-Kippachse optimiert die Flexibilität beim Positionieren der Werkstücke und erleichtert das präzise Schweißen auch anspruchsvoller Geometrien.
