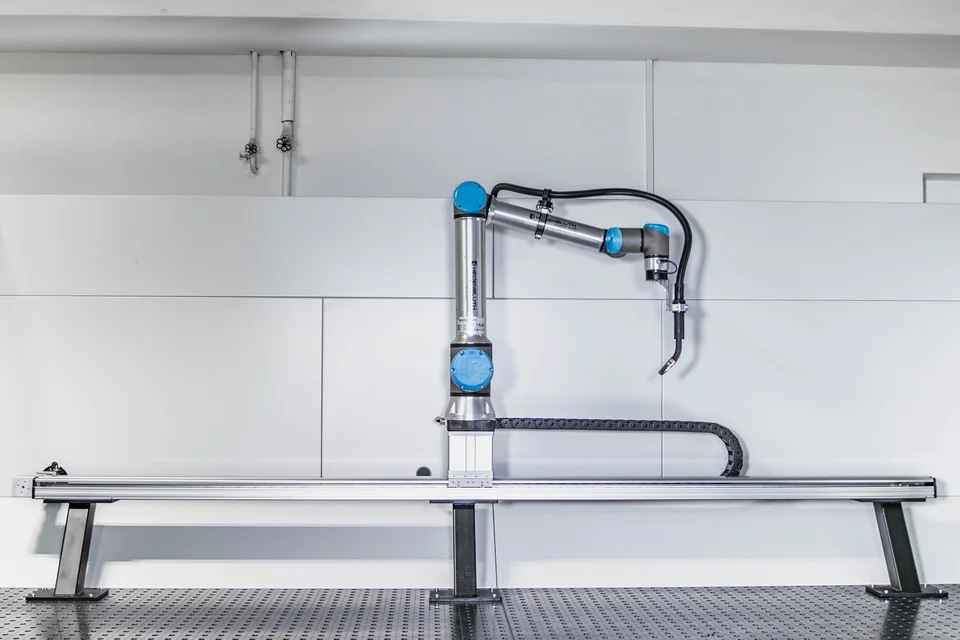

The BigArc Cobot Edition is an innovative welding robot cell specifically designed for the requirements of modern production lines.

With its focus on flexibility and efficiency, it offers a future-oriented solution for companies that want to optimize their production processes and increase productivity.

Thanks to a two-station solution, the BigArc Cobot Edition is able to significantly accelerate workflows and efficiently distribute workloads.

[Translate to English:] Heidenbluth - BigArc Cobot Edition
  • 1

    Certified security technology

  • 2

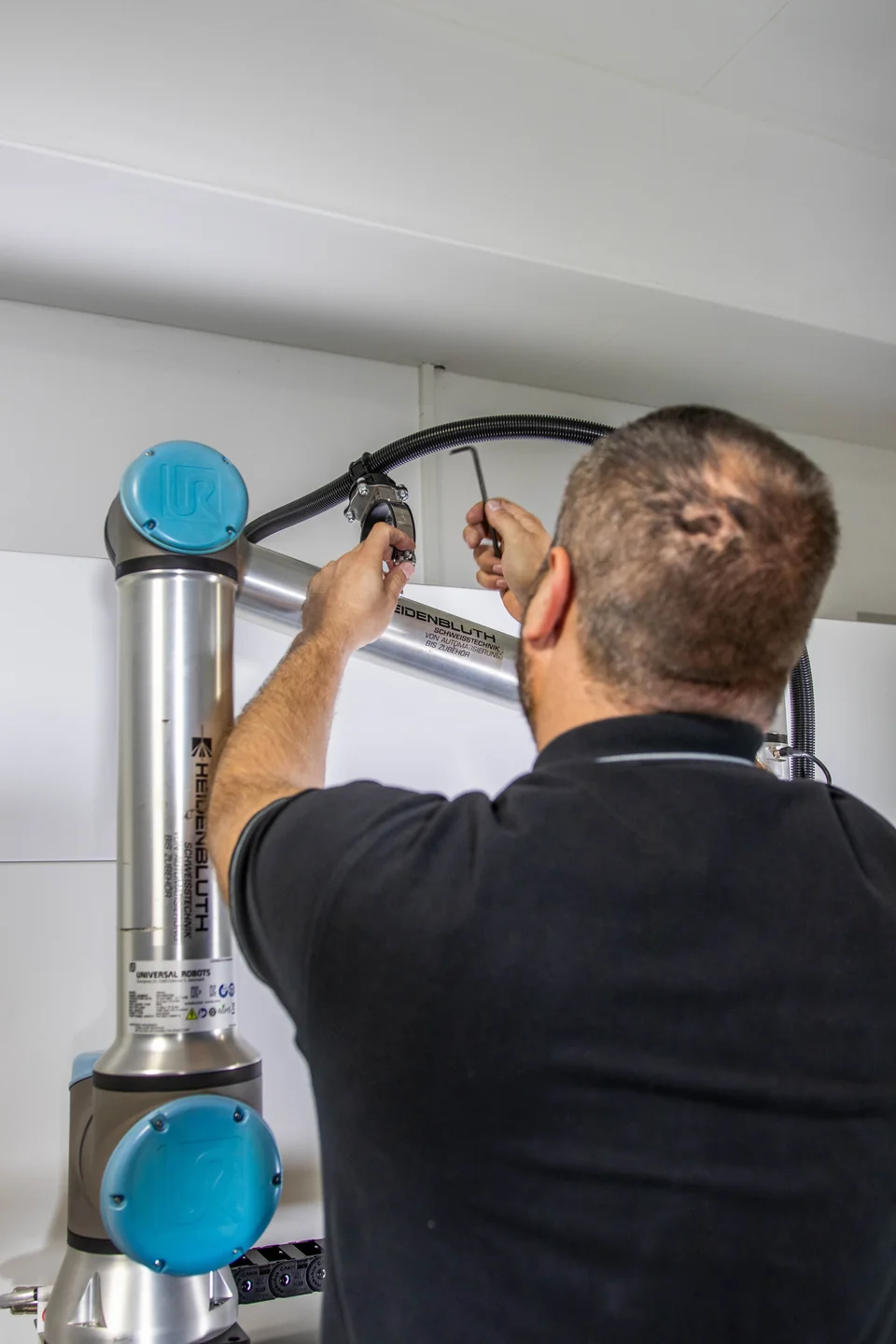

    Insulated torch holder with free-drive function for convenient robot positioning.

  • 3

    Modern, digital welding technology – available in various welding processes

  • 4

    Two-station solution

  • Productivity increase: Two-station design enables parallel work, thereby minimizing setup and cycle times.
  • Flexibility: Modular and versatile, ideal for changing production series without complex adjustments.
  • Ease of use: Intuitive controls allow operation even for less experienced employees.
  • High precision: Achieves consistent welding quality and reduces scrap and rework.
  • Safety standards: Collaborative robot (cobot) with integrated safety mechanisms for safe use alongside humans.
  • Cost efficiency: Faster return on investment (ROI) through reduced labor costs and increased productivity.
  • Welding stations: 2
  • Maximum payload: Variable depending on configuration and cobot model
  • Precision: Repeatability in the millimeter range
  • Compatibility: Adaptable to various welding systems and materials
  • Safety features: Sensors for collision detection and shutdown
  • Software: Supports modern interfaces and Industry 4.0 standards
  • MIG/MAG from EWM
  • MIG/MAG from Fronius
  • CMT - Cold Metal Transfer by Fronius
  • WIG-DC from EWM
  • EWM TIG AC/DC
  • TIG DC with cold wire feed from EWM
  • TIG AC/DC with cold wire feed from EWM
  • With protective film for UR e-Series
  • With protective cover for control panel
  • Cobot LED Lighting traffic light
  • Pneumatic zero-point clamping system for holding Siegmund interchangeable plates
[Translate to English:] Heidenbluth - BigArc Cobot Edition

Flexibility and adaptability

The BigArc Cobot Edition stands out due to its high flexibility and is particularly suitable for small and medium-sized enterprises that have flexible production requirements.

Thanks to its modularity and easy integration into existing production lines, it is versatile and can be adapted to different components and welding requirements without major modifications. This allows companies to weld various products without costly re-equipment, which is particularly advantageous for frequently changing production runs.

[Translate to English:] Heidenbluth - BigArc Cobot Edition

Future viability and expansion possibilities

The BigArc Cobot Edition is not only an investment in the present, but also in the future. The welding robot cell can be expanded with various accessories and software updates, making it a sustainable solution for manufacturing companies.

Continuous development and the ability to integrate new technologies ensure that the BigArc Cobot Edition can keep pace with the increasing demands of Industry 4.0.

[Translate to English:] BigArc Cobot Edition

More power in a small space – the BigArc Cobot Edition makes it possible

The BigArc Cobot Edition, with its well-designed two-station solution, provides a noticeable boost in productivity – especially for small and medium-sized production runs.

While the cobot performs welding work at one station, the operator can simultaneously prepare new components at the second station – for a seamless workflow without downtime.

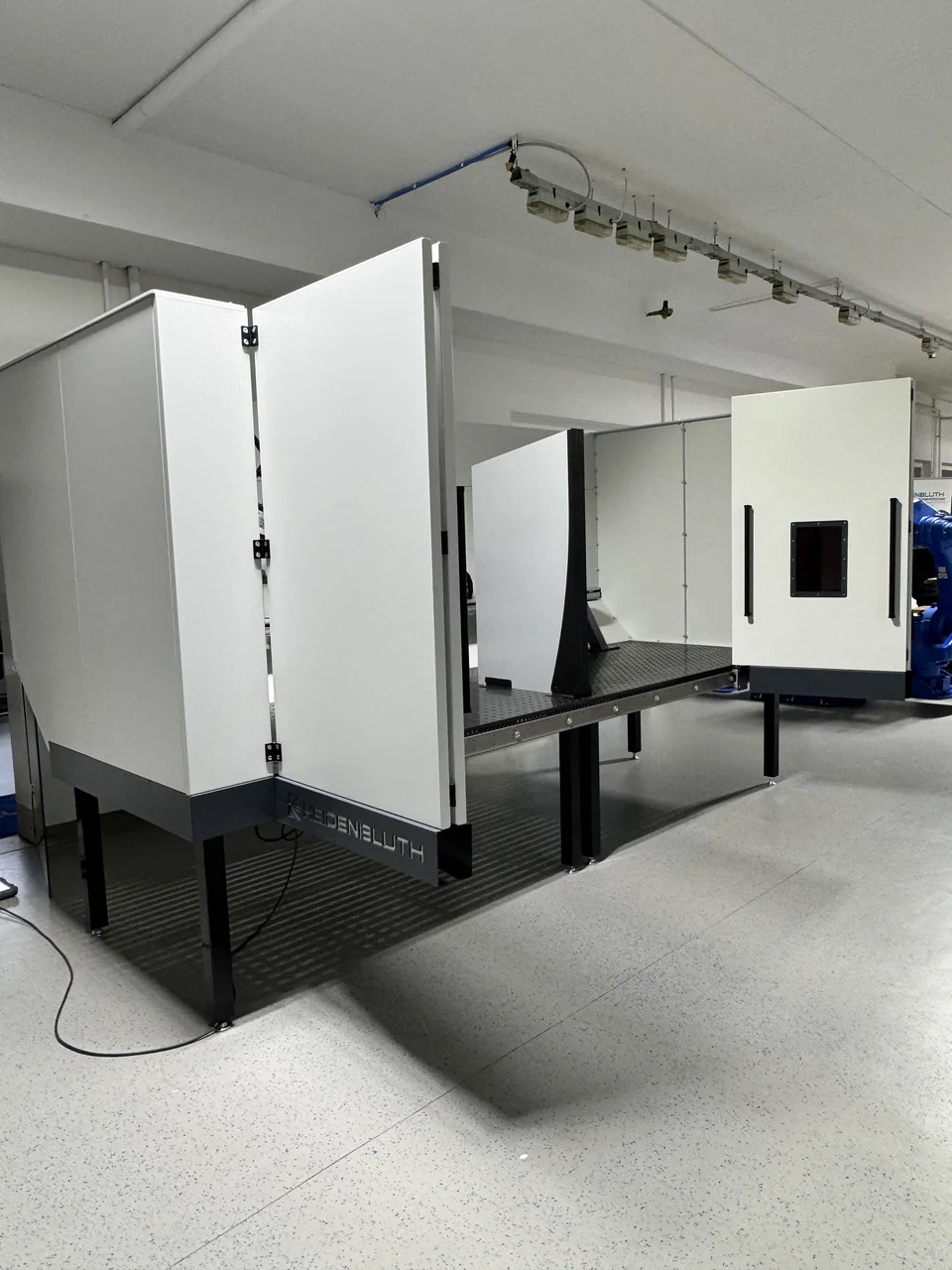

And what if larger components need to be welded? No problem: The partition wall can be removed in just a few steps and the system is transformed in no time into a spacious single-station welding cell.

Thanks to intelligent safety control, the system automatically recognizes which operating mode is active – and adjusts accordingly.
