The Swift-Jet Pro is a package that combines the ability to cut a wide range of materials with outstanding precision and repeatability to achieve excellent results.

Exceptional quality, excellent price/performance ratio and the robust construction of our CNC plasma cutters have combined to create the Swift-Jet Pro, the waterjet cutting system that sets the standard.

Introducing the Swift-Jet Pro, our new, affordable, and user-friendly waterjet cutting system. Thanks to its cutting precision, this practical system can cut textiles, rubber parts, foam components, plastic parts, leather, composite materials, stone, tiles, glass, metals, food, paper, and many other materials.

Our systems are calibrated using the latest version of Renishaw software and ballbar test equipment, ensuring outstanding precision. This product is particularly valuable due to its high-quality design and construction, components, pump, software, and installation, as well as our customer service and user training.

[Translate to English:] Swift Jet Pro
  • 1

    Height control for automatic contour adjustment

  • 2

    Swift-Cut Pro plate sensor for precise material positioning

  • 3

    Laser aid for precise positioning of the cutting head

  • 4

    Engraving tool for marking and cutting in one operation

  • Excellent price/performance ratio
  • Underwater cutting system (adjustable water level)
  • Lower operating costs
  • Space and time savings
  • Cutting area of ​​3,000 x 1,500 mm
  • IGEMS Software
  • High/low pressure control
  • CE conformity
  • Effective cutting area 3,000 x 1,500 mm
  • Easy-to-install, intuitive and low-maintenance system
  • Massive, heavy-duty, welded steel substructure
  • Linear motion guides and bearings for excellent stability and precision
  • High-performance hybrid servomotors for repeatable positioning accuracy, controlled torque output and smooth movement.
  • Abrasive container (200 kg capacity), with abrasive feed under pressure
  • The following materials can be cut:
    structural steel, stainless steel, hardened tool steel, alloys of all kinds, aluminum, titanium, copper, brass, carbon fiber reinforced plastics, glass fiber reinforced plastics, glass, stone, concrete, ceramics and rubber.
  • Express speed: max. 20 m/min
  • Cutting speed: 1.8 m/min
  • Part tolerance: +/- 0.2 mm
  • The water pump is included in the price.
  • Made in Germany
  • Direct drive version.
  • Outlet pressure: 3,400 bar
  • Engine speed: 600-1,450 rpm
  • Engine power: 15 kW or 20 hp
  • Stainless steel pump head, free of AC voltage.
  • Bellows form a hermetic seal between the suction chamber and the crank area
  • All-ceramic or tungsten carbide pistons
  • Crank cross-sectional area calculation using the 'finite element method' ensures a long service life under continuous load.
  • Pressure circulation oil lubrication system
  • Pump is supplied with initial equipment kit

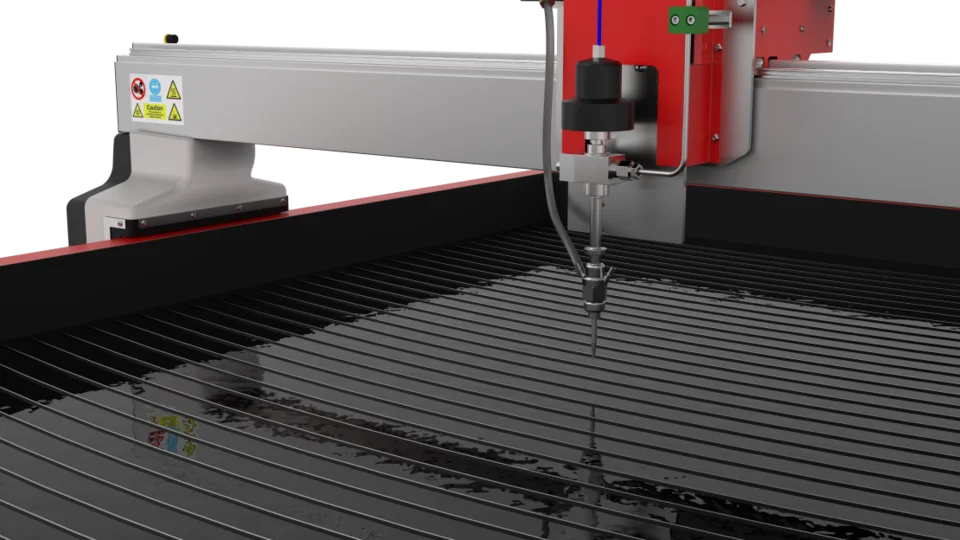

[Translate to English:] Swift-Cut XP

Advanced waterjet cutting system

The Swift-Cut Jet is an advanced waterjet cutting system designed for maximum precision and versatility in material processing. Utilizing a powerful waterjet that can be mixed with abrasives, the Swift-Cut Jet is ideally suited for cutting a wide variety of materials, including metal, glass, ceramics, plastics, and composites – even at high material thicknesses.

Thanks to its high-pressure technology, the Swift-Cut Jet generates an extremely fine water jet that can cut even complex shapes and contours precisely and without thermal degradation. The machine achieves cutting accuracy in the micrometer range, making it particularly suitable for applications requiring the highest precision, such as in the aerospace, medical technology, and electronics industries. A major advantage of waterjet cutting is that the material is not heated during the cutting process, thus preventing any structural changes or deformations.
