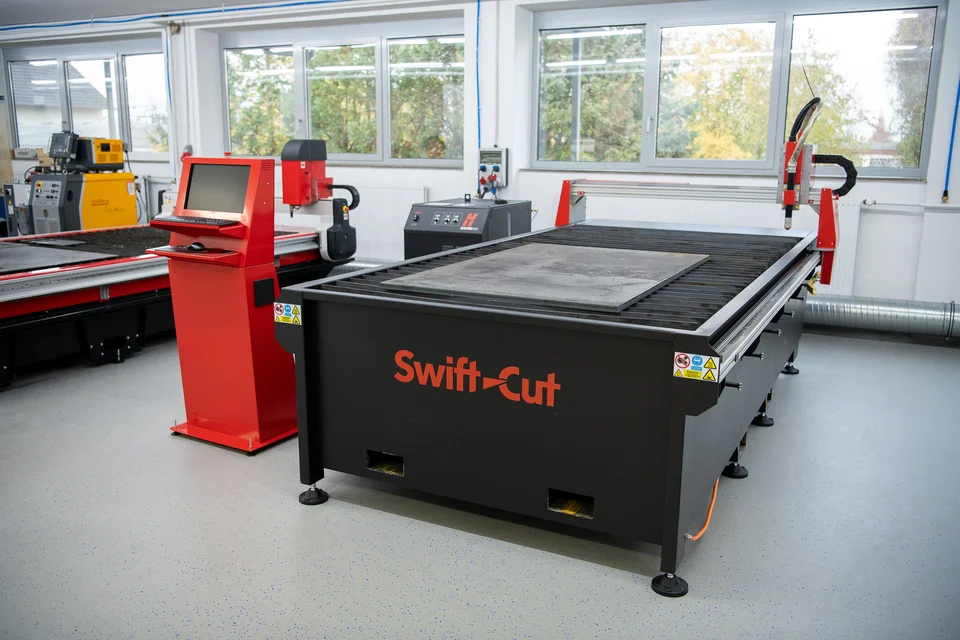

The Swift-Cut XP is a state-of-the-art CNC plasma cutting machine specifically designed for daily use in a production environment.

Due to its robustness and resistance, it is ideally suited for precise and intensive cutting work.

Equipped with a powerful 400 W ACOMRON servo drive, the Swift-Cut XP offers excellent precision and stability on the X and Y axes. These features make the machine the ideal choice for companies that rely on high cutting quality and efficiency.

[Translate to English:] Heidenbluth - Swift Cut XP
  • 1

    Swift-Cut XP worm gear for a precise cut

  • 2

    Magnetic safety head to protect the burner from collisions

  • 3

    Swift-Cut XP height control for automatic contour adjustment

  • 4

    Swift-Cut XP initial height measurement for precise penetration height

  • Small footprint
  • Cutting with air/air, O2/air and N2/air at high speed
  • Worm gear rack for precise and even cutting
  • Engraving tool, durable portal
  • Detachable head system to prevent burner failure
  • Fully encapsulated drag chains
  • Segmented suction system that enables extraction at the cutting position
  • Digital burner height control and floating initial height measurement
  • Forklift bags for transport
  • Water table or suction table
  • Servomotors : 400 W ACOMRON servomotors on the X and Y axes for precise movements.
  • Penetration capacity : Cutting of materials up to 32 mm thick.
  • Maximum workpiece height : Cutting of box profiles up to 150 mm in height.
  • Software compatibility : Supports DXF, DWG, JPG and TIF files.
  • Cutting options : Mixed gas cutting and water mist technology for precise cutting.
  • Cutting optimization : Box function for optimal material utilization.
  • Water table version 3,000 x 1,500 mm
    XP cutting table with water basin for sheet metal format 3,500 x 1,500 mm.
  • Extraction table version 3,000 x 1,500 mm
    XP cutting table with extraction table and removable slag trays for sheet metal format 3,500 x 1,500 mm.
  • Extraction table version 4,000 x 2,000 mm
    XP cutting table with extraction table and removable slag trays for sheet metal format 4,000 x 2,000 mm.

MaxPro 200 from Hypertherm

The Hypertherm MaxPro 200 plasma cutting system achieves impressive cutting speeds, consistent cut quality, and exceptional consumable life with air or oxygen plasma gas. Optimal cutting parameters are automatically set and controlled in a single step for even greater ease of operation. Designed for mechanized cutting, the MaxPro 200 delivers reliable performance across a wide range of industrial applications. Thanks to its integrated water cooling system, consumable life is exceptionally long.

Hole-punching capacity in production

  • unalloyed steel 32 mm
  • alloy steel 25 mm

Simple cut

  • unalloyed steel 75 mm
  • alloy steel 64 mm
[Translate to English:] Heidenbluth - Swift-Cut XP

Benefits for industry

The Swift-Cut XP combines technological innovation with high performance and durability. Its robust design, combined with liquid-cooled cutting technology and powerful software, makes it the ideal choice for demanding metalworking applications. It is suitable for a wide range of industries where precision, efficiency, and flexibility are required.

The ability to cut thicker profiles and various materials gives companies a clear competitive advantage. Furthermore, the machine is complemented by a comprehensive software solution characterized by its ease of use and versatile import options. The Swift-Cut XP is therefore not just a cutting machine, but an integrated system for efficient, high-quality production – ideal for companies that demand the highest cutting quality and a future-proof solution.
